Silicon Carbide Heating Elements ；SiC Heating Elements

For furnace operators and industrial buyers, this question directly affects maintenance costs, heating efficiency, and production stability. In the alloy industry, the lifespan of SiC rods depends on working temperature, atmosphere, installation quality, and daily operation. Understanding these factors helps companies choose reliable heating elements and reduce replacement frequency.

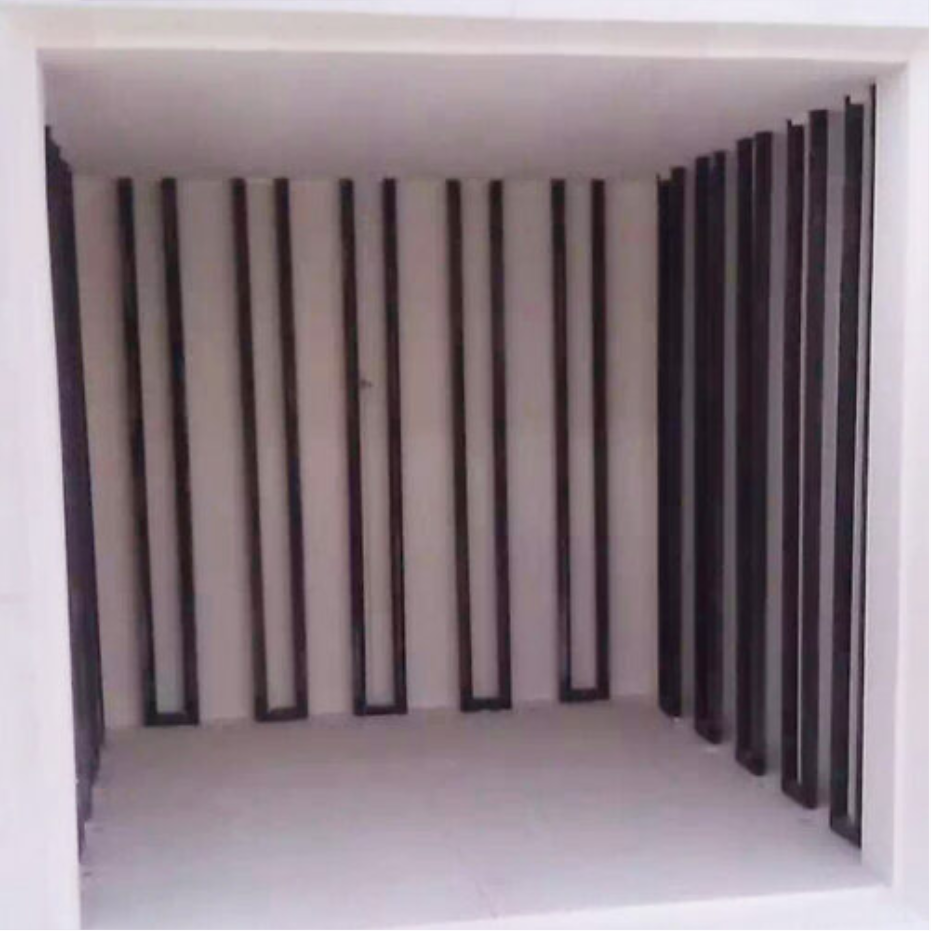

In alloy melting, heat treatment, sintering, and holding furnaces, silicon carbide rods are expected to deliver stable output over long production cycles. Yet there is no single lifespan figure that fits every furnace. A rod used at 1100 C in a well-controlled oxidizing atmosphere may last much longer than one working near 1450 C with frequent thermal shocks and poor voltage matching.

For buyers comparing suppliers, the better question is not only “What is the normal service life of silicon carbide rods? ” but also“Under which conditions can that service life be achieved?” In practice, choosing the right specification, arranging correct cold-end installation, and controlling maintenance intervals often makes a bigger difference than price alone.

Typical Service Life of Silicon Carbide Rods in Alloy Furnaces

In most alloy industry applications, the normal service life of silicon carbide rods is commonly measured in months of operation or in total furnace running hours. Under stable conditions, many users expect a practical service range of 6 to 18 months. In hour-based terms, a common reference is roughly 2,000 to 6,000 operating hours, depending on furnace design and duty cycle.

This range should be treated as an operating benchmark rather than a fixed promise. A batch furnace that starts and stops 2 to 4 times per day usually puts more thermal stress on rods than a continuous furnace running 20 to 24 hours. In alloy processing, repeated expansion and contraction can accelerate resistance growth and reduce useful output.

Why the Service Life Varies So Much

Silicon carbide heating elements age naturally as surface oxidation changes electrical resistance over time. This is normal. The practical end of service life often arrives when the rod can no longer provide enough heat at the available transformer capacity, or when its resistance has increased beyond the matching range of the existing electrical system.

For example, two rods from the same production batch may perform differently if one is installed with proper contact pressure and good alignment while the other suffers from loose clamps, local overheating, or mechanical vibration. In alloy plants, these small installation differences can shorten usable life by 20% to 30%.

Common Lifetime Expectations by Temperature Band

The table below gives a practical reference for how operating temperature influences service life. These figures reflect common industrial expectations in alloy furnace environments rather than guaranteed values.

Working Temperature	Typical Operating Pattern	Usual Service Life Range
1000°C–1200°C	Stable continuous heating, moderate load	10–18 months or about 4,000–6,000 hours
1200°C–1350°C	Regular alloy heat treatment and sintering cycles	8–12 months or about 3,000–4,500 hours
1350°C–1450°C	High-load operation with tighter power demand	6–9 months or about 2,000–3,500 hours

The main conclusion is simple: the closer operation moves toward the upper temperature band, the more important matching, control accuracy, and atmosphere stability become. A small increase in temperature can have a disproportionate effect on rod aging, especially when the furnace already runs near its electrical limit.

Continuous Operation vs. Intermittent Operation

In many alloy workshops, intermittent production is unavoidable. However, frequent shutdowns create thermal cycling that speeds up cracking risk and resistance drift. A furnace running 1 long cycle per day may preserve rods better than one running 5 short cycles, even if the total heating hours are similar.

Continuous operation usually supports more stable resistance growth.

Frequent start-stop cycles increase thermal shock and connection stress.

Rapid heating ramps above normal setpoints can cut useful life noticeably.

Uneven loading inside the furnace often causes local hot spots and early failure.

Key Factors That Determine Silicon Carbide Rod Lifespan

When buyers ask,“What is the normal service life of silicon carbide rods?”the most accurate answer comes from process conditions. In alloy production, four variables dominate: temperature, furnace atmosphere, electrical matching, and installation quality. If any one of these is poorly controlled, service life can fall well below the expected 6 to 18 month range.

1. Working Temperature and Surface Load

Higher temperature is the most direct life-limiting factor. Running a rod steadily at 100°C to 150°C above the recommended process window may cause faster oxidation, resistance increase, and loss of heating output. In alloy furnaces, overloaded elements often force operators to raise voltage repeatedly, which shortens the remaining useful life even more.

2. Furnace Atmosphere

SiC rods generally perform well in oxidizing atmospheres, but reducing atmospheres, corrosive vapors, metallic dust, and alkali contamination can damage the protective layer. In alloy applications involving zinc, aluminum, copper, or volatile additives, atmosphere control must be reviewed carefully. Even low-level contamination over 3 to 6 months may cause abnormal wear.

3. Electrical Design and Power Compensation

Because silicon carbide elements increase in resistance during use, the power system must have enough voltage adjustment capacity. If the transformer or control circuit cannot compensate for progressive resistance growth, rods may still be physically intact but no longer able to reach process temperature. This is a common reason operators think the element
“failed early.”

4. Installation and Mechanical Support

Poor alignment, excessive tightening, hanging stress, or contact corrosion can all reduce service life. Silicon carbide rods should be installed with adequate spacing, balanced support, and clean connection areas. In larger alloy furnaces, even a few millimeters of installation offset can create uneven radiant heating and local mechanical stress.

The following table summarizes how major operating factors influence usable life and what buyers should check before ordering replacement rods or specifying a new heating system.

Factor	Typical Risk in Alloy Furnaces	Recommended Control Point
Overtemperature	Accelerated oxidation and rapid resistance growth	Keep process within target band, verify controller accuracy every 3–6 months
Atmosphere contamination	Corrosion from metal vapors, dust, or reducing gases	Review furnace sealing, ventilation, and material loading method
Incorrect electrical matching	Insufficient power as resistance rises over time	Confirm transformer margin, voltage tap range, and phase balance
Improper installation	Cracking, loose contact, local overheating	Check alignment, clamp condition, and support spacing during each shutdown

For procurement teams, this means supplier selection should include more than element dimensions. A supplier that can review temperature band, atmosphere, and power configuration usually helps buyers achieve lower total replacement cost over a 12-month or 24-month operating period.

How to Extend Service Life in Daily Alloy Plant Operation

Good operating discipline can often extend silicon carbide rod life by several months. In many alloy furnaces, premature replacement comes from preventable issues rather than material defects. A maintenance-focused approach is especially important where downtime affects casting schedules, furnace utilization, and energy cost per ton.

Control Heating Ramps and Shut-Down Cycles

Avoid sudden thermal shock whenever possible. A controlled ramp-up and ramp-down sequence helps reduce internal stress. For example, moving from room temperature to process temperature in planned stages instead of a single aggressive ramp can lower cracking risk. This is particularly useful in alloy heat treatment lines with daily restarts.

Inspect Connections and Replace Worn Accessories

Element life is closely linked to terminal condition. Oxidized braids, loose clamps, or dirty contact surfaces increase resistance at the connection point and create hot spots. A simple inspection every 2 to 4 weeks can identify most of these issues before they force unplanned shutdown.

Monitor Resistance and Heating Uniformity

Tracking resistance trends gives an early warning of aging. If one rod or one zone drifts faster than the rest, operators should check load balance, atmosphere leakage, or contact condition. In a multi-zone alloy furnace, replacing only the failed rod without reviewing the entire circuit may lead to poor matching and unstable heating.

Practical Maintenance Checklist

Check terminal tightness every 2 to 4 weeks.

Inspect rod alignment during each planned shutdown.

Review temperature controller deviation at least every 3 months.

Clean dust and conductive deposits from connection areas.

Record resistance change by heating zone for trend analysis.

Confirm transformer taps still match the aged rod set.

Plants that keep these six checks in routine maintenance usually gain more predictable replacement planning. Instead of waiting for failure, they can schedule rod changes during planned maintenance windows, reducing emergency stops and protecting output consistency.

How Industrial Buyers Should Choose Silicon Carbide Rod Suppliers

For purchasers in the alloy industry, answering
“
What is the normal service life of silicon carbide rods?
”
also requires evaluating supplier capability. A lower purchase price may not reduce total operating cost if dimensions are inconsistent, resistance matching is poor, or technical support is limited. Stable quality matters more when furnaces run for 8, 12, or 16 hours per day.

What to Ask Before Ordering

Before placing an order, buyers should confirm at least 5 key points: working temperature, furnace atmosphere, heated zone dimensions, electrical supply configuration, and expected duty cycle. If possible, also provide existing rod size, hot zone length, cold end length, and the current failure mode. These details help avoid specification mismatch and repeated trial orders.

Why Production Experience Matters

Liao yang jia xin carbide co ltd is a high and new technology enterprise engaged in developing, manufacturing, and selling SiC heating elements, Mosi2 heating elements, silicon carbide protective pipes, and graphite products. Established in 2007 with more than 20 years of production experience, the company serves overseas markets including the USA, Germany, France, Poland, Spain, Turkey, Russia, Ukraine, Japan, Korea, Singapore, Vietnam, Thailand, and Iran.

For alloy plant buyers, this kind of export and production background is relevant because it usually reflects broader exposure to furnace structures, installation methods, and replacement requirements across different thermal processes. It also helps when users need practical communication about dimensions, power conditions, and application-specific service expectations.

Supplier Evaluation Matrix for Alloy Industry Buyers

The table below can be used by procurement teams when comparing silicon carbide rod suppliers for alloy furnace projects or routine replacement orders.

Evaluation Item	Why It Matters	Buyer Checkpoint
Dimension consistency Affects fit, spacing, and heating	uniformity Confirm tolerance and batch	consistency before shipment
Resistance matching	Critical for balanced power loading in multi-rod circuits	Ask for matching method and recommended grouping practice
Application support Reduces wrong	selection in special furnace atmospheres	Provide process conditions and review technical feedback

This evaluation approach helps buyers focus on total lifecycle value instead of unit price alone. In alloy operations, one delayed shipment or one mismatched rod batch can cost more than the initial saving on the order.

Common Questions from Alloy Furnace Operators

When should silicon carbide rods be replaced?

Replacement is usually needed when the furnace can no longer reach target temperature within the normal heating time, when resistance has increased beyond the electrical adjustment range, or when visible damage such as cracking or severe deformation appears. In many plants, this decision is made after 10% to 20% output loss becomes noticeable.

Should only one failed rod be replaced?

Not always. In a series or balanced zone configuration, replacing a single heavily aged rod with a new one can create mismatch. Operators should check the condition of the full set, compare resistance values, and decide whether grouped replacement is more suitable. This is especially important in alloy furnaces requiring uniform heat distribution.

Are silicon carbide rods suitable for high-temperature alloy applications?

Yes, they are widely used in high-temperature thermal equipment, but suitability depends on temperature band, atmosphere, and control design. For some very high-temperature applications or special atmospheres, buyers may also compare SiC rods with Mosi2 heating elements based on process requirements, thermal response, and cost of ownership.

The normal service life of silicon carbide rods in the alloy industry is not a single fixed number. In most real furnace conditions, a practical range of 6 to 18 months or about 2,000 to 6,000 hours is common, but actual results depend on temperature, atmosphere, power matching, installation, and maintenance discipline.

For alloy manufacturers seeking stable heating performance, lower downtime, and more predictable replacement planning, selecting the right SiC heating element supplier is as important as choosing the right rod specification. If you need support with silicon carbide rods, Mosi2 heating elements, protective pipes, or graphite products for alloy furnace applications, contact us now to get product details, application guidance, or a customized solution.
